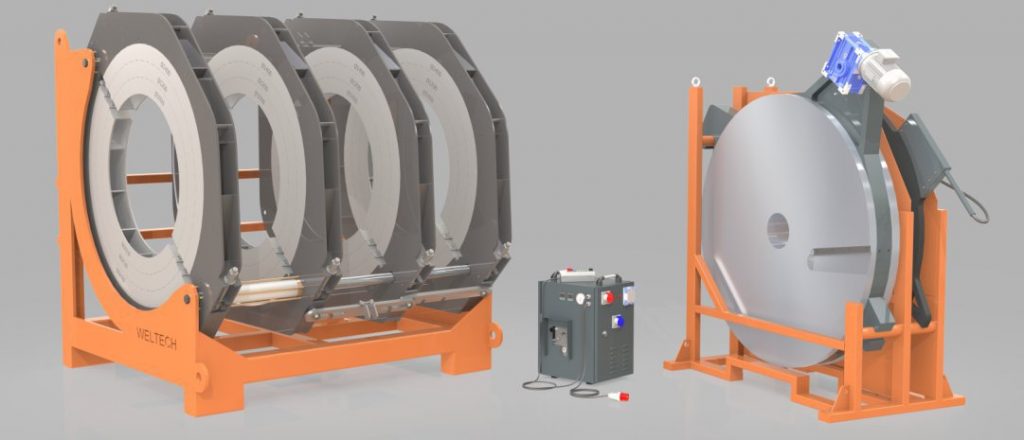

W2000 BUTT WELDING MACHINE GENERAL FEATURES
• Machine is for weldings of PE – PP – PVDF pipes and fittings up to 32 Bar .Welding sizes are 1600 – 1800 – 2000 mm
• With the shortest setup time it provides simple and fast welding operations according to international standards ISO 12176 – 1
• With it’s lightweight nature provides easy handling
• Maximum working pressure is 200 Bar
• The working environmental temperature is -40 C° ~+40 C°
W2000 BUTT WELDING MACHINE MAIN BODY
• The main body supports and centres the plastic pipes with two fixed and two movable clamps.
• Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps for and backwards and supply the necessary movement for the welding process.
W2000 BUTT WELDING MACHINE TRIMMER
• The trimmer is the tool which cleans and smoothes the both ends of the pipes before the heat ing process with its blades on both sides.
• W2000 Butt welding machine trimmer unit ensures clean and parallel pipe faces.
W2000 BUTT WELDING MACHINE HEATER
• The pipe ends will be heated by this heater before the welding process.
• The settings of the heater will be done by the thermostat on the control unit. W 2000 Butt welding machine PTFE- coated heating element ensures uniform surface temperature.
W2000 BUTT WELDING MACHINE CONTROL UNIT
• The necessary electric will be transfered to the heater and trimmer by means of this unit and to the main machine by the hydraulic pressure.
• It will be controlled by the manual buttons. On the manual control panel there are four buttons and a key. The clamps are controlled by the buttons and the trimmer by the key.
