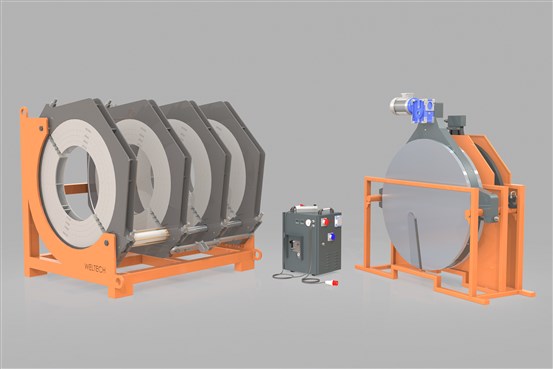

W1200 BUTT WELDING MACHINE

info form

W1200 ALIN KAYNAK MAKİNESİW1200 BUTT WELDING MACHINE GENERAL FEATURES

• Machine is for weldings of PE – PP – PVDF pipes and fittings up to 32 Bar .Welding sizes are 710 – 800 – 900 – 1000 – 1200 mm

• With the shortest setup time it provides simple and fast welding operations according to international standards ISO 12176 – 1

• With it’s lightweight nature provides easy handling

• Maximum working pressure is 200 Bar

• The working environmental temperature is -40 C° ~+40 C°

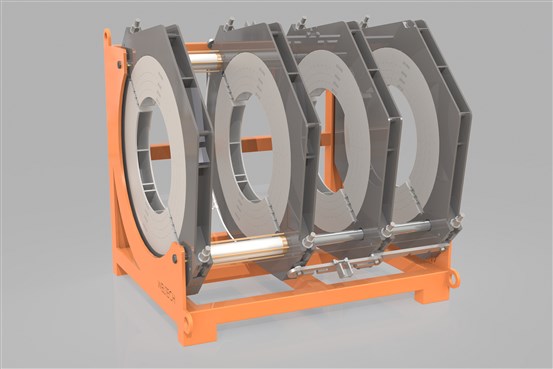

W1200 ALIN KAYNAK MAKİNE GÖVDESİW1200 BUTT WELDING MACHINE MAIN BODY

• The main body supports and centres the plastic pipes with two fixed and two movable clamps.

• Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps for and backwards and supply the necessary movement for the welding process.

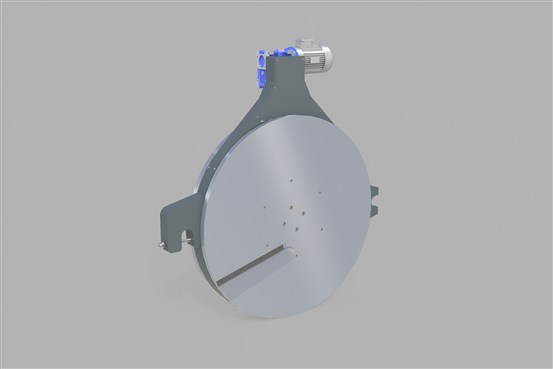

W1200 ALIN KAYNAK MAKİNE TRAŞLAYICISIW1200 BUTT WELDING MACHINE TRIMMER

• The trimmer is the tool which cleans and smoothes the both ends of the pipes before the heating process with its blades on both sides.

• W1200 Butt welding machine trimmer unit ensures clean and parallel pipe faces







W1200 ALIN KAYNAK MAKİNE ISITICISI

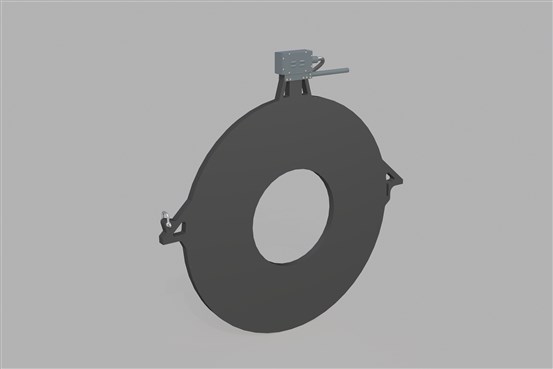

W1200 BUTT WELDING MACHINE HEATER

• The pipe ends will be heated by this heater before the welding process.

• The settings of the heater will be done by the thermostat on the control unit. W 1200 Butt welding machine PTFE- coated heating element ensures uniform surface temperature.

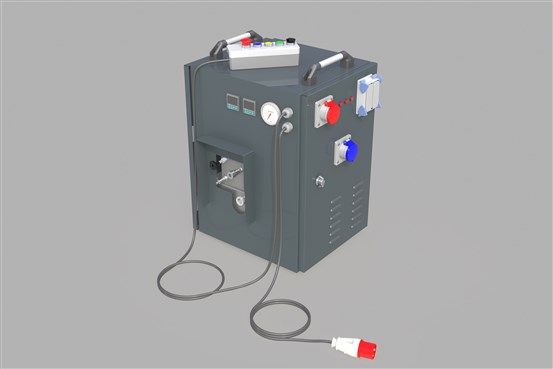

W1200 ALIN KAYNAK MAKİNE KONTROL ÜNİTESİW1200 BUTT WELDING MACHINE CONTROL UNIT

• The necessary electric will be transfered to the heater and trimmer by means of this unit and to the main machine by the hydraulic pressure.

• It will be controlled by the manual buttons. On the manual control panel there are four buttons and a key. The clamps are controlled by the buttons and the trimmer by the key.

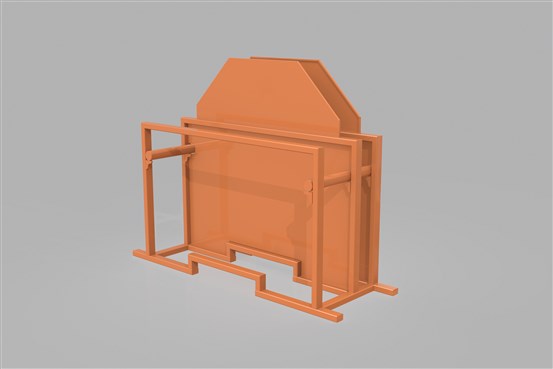

W1200 ALIN KAYNAK MAKİNESİ MUHAFAZA KUTUSUW1200 BUTT WELDING MACHINE HOUSING BOX

– Housing and support box prevents the heat loss of the heater and protects the trimmer from the exterior effects in a manner supporting the heater (against impacts, water, etc.)
